EXPERT ZONE PLANS
Precision-drafted fire alarm schematics tailored to your premises. We handle the design so you can guarantee safety, clarity, and total compliance with UK fire regulations.
Fire Safety Legislation & Your Responsibilities
Current UK fire safety legislation (BS 5839-1) mandates that a clear, accurate schematic of your building's fire alarm zones must be prominently displayed adjacent to the main control panel. This ensures that in the event of an emergency, the fire brigade can instantly locate the source of the alarm without confusion or delay.
"Don't let missing documentation hold up your project sign-off. We provide an end-to-end drafting solution so your site achieves full compliance without the stress."
Our Drafting Service Benefits
Regulatory Assurance
Every schematic we produce is thoroughly checked against current fire safety legislation to ensure seamless compliance for your site.
Highly Legible Design
We prioritise readability, using distinct colour coding and clear markers so emergency services can orient themselves without delay.
Flexible Input Formats
Send us your existing architectural plans, PDFs, or even basic site sketches, and we will translate them into a high-quality finished product.

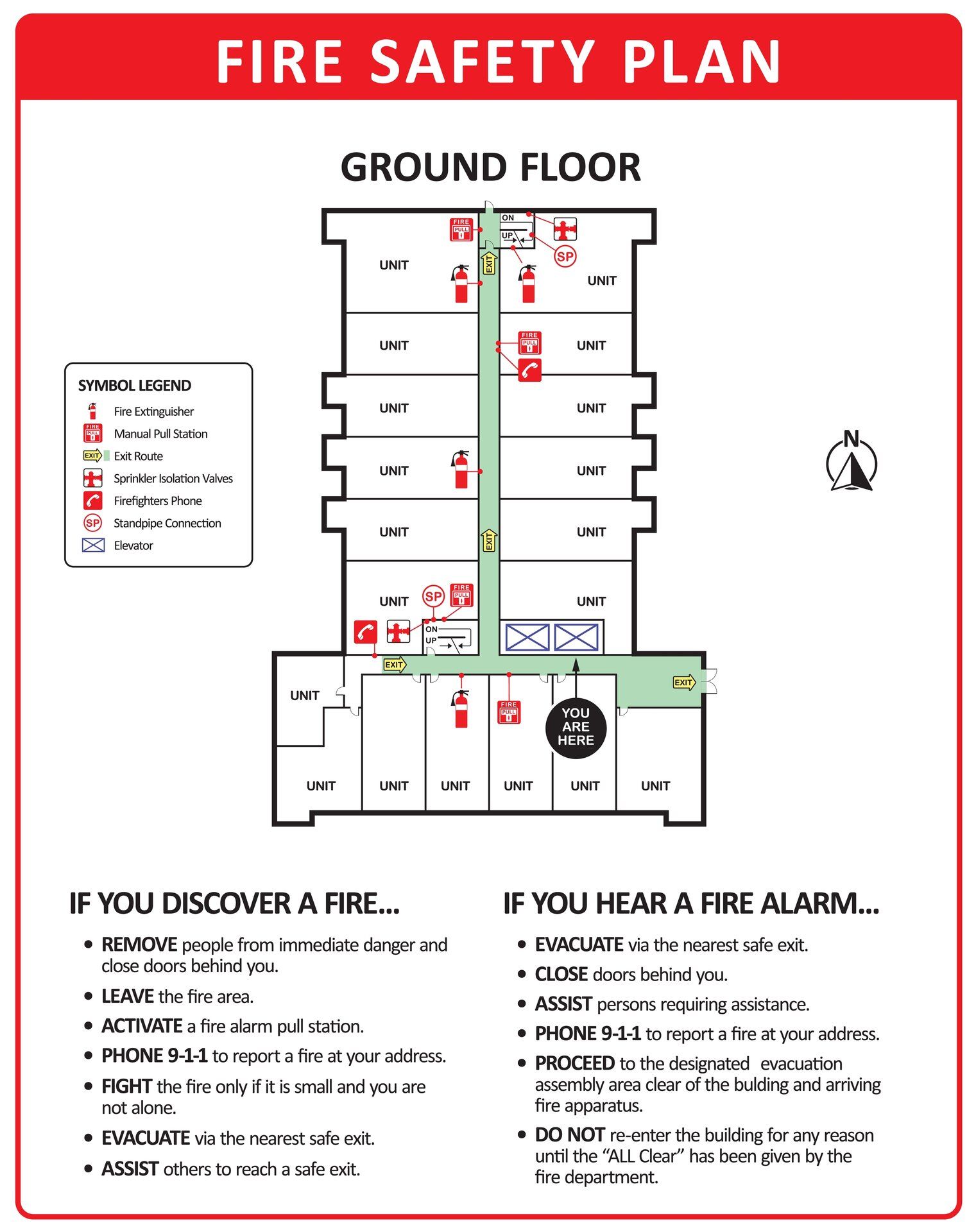

What We Include in Every Plan
A robust zone plan must provide instantaneous spatial awareness to anyone viewing it. Our standard output incorporates all the critical features required by fire and rescue teams:
